econ connect

For everyone who likes to browse „on screen“.
The digital catalogue.

Our current product overview of all articles of econ connect in a flip page catalogue.

Benefit from our new Service of the digital catalogue:

  • all technical information at a glance
  • high-resolution drawings and pictures
  • direct links to our online store

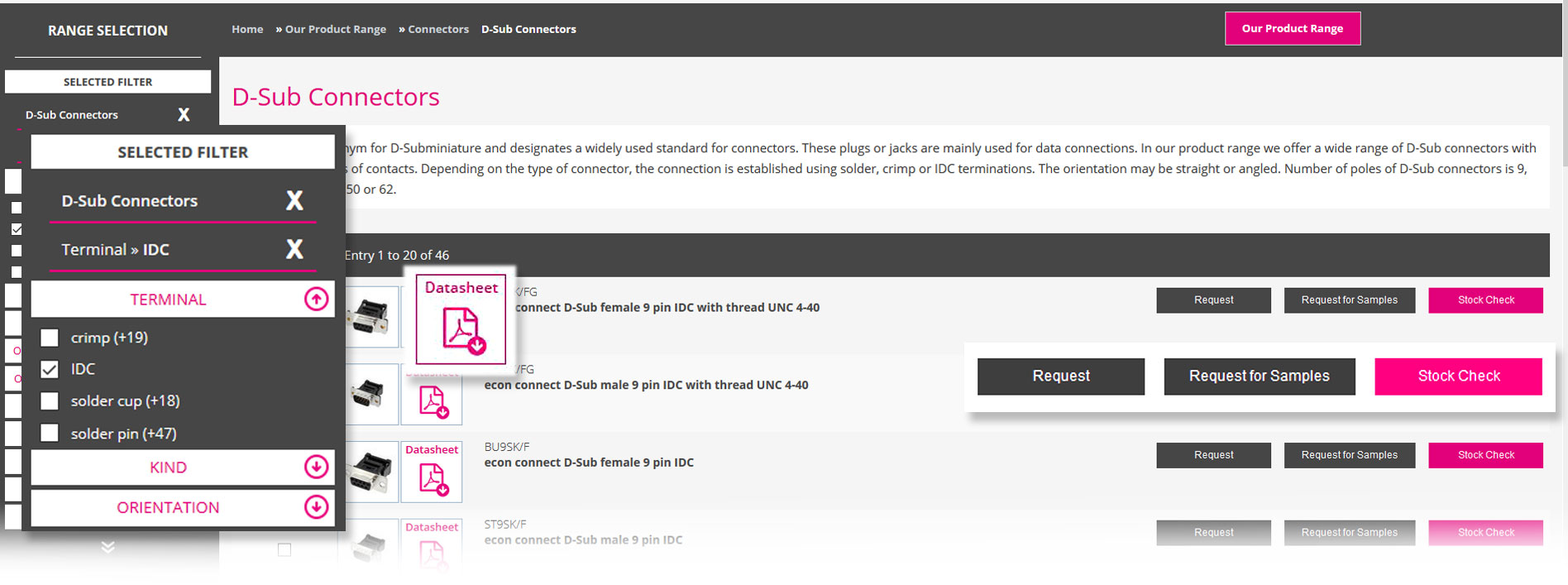

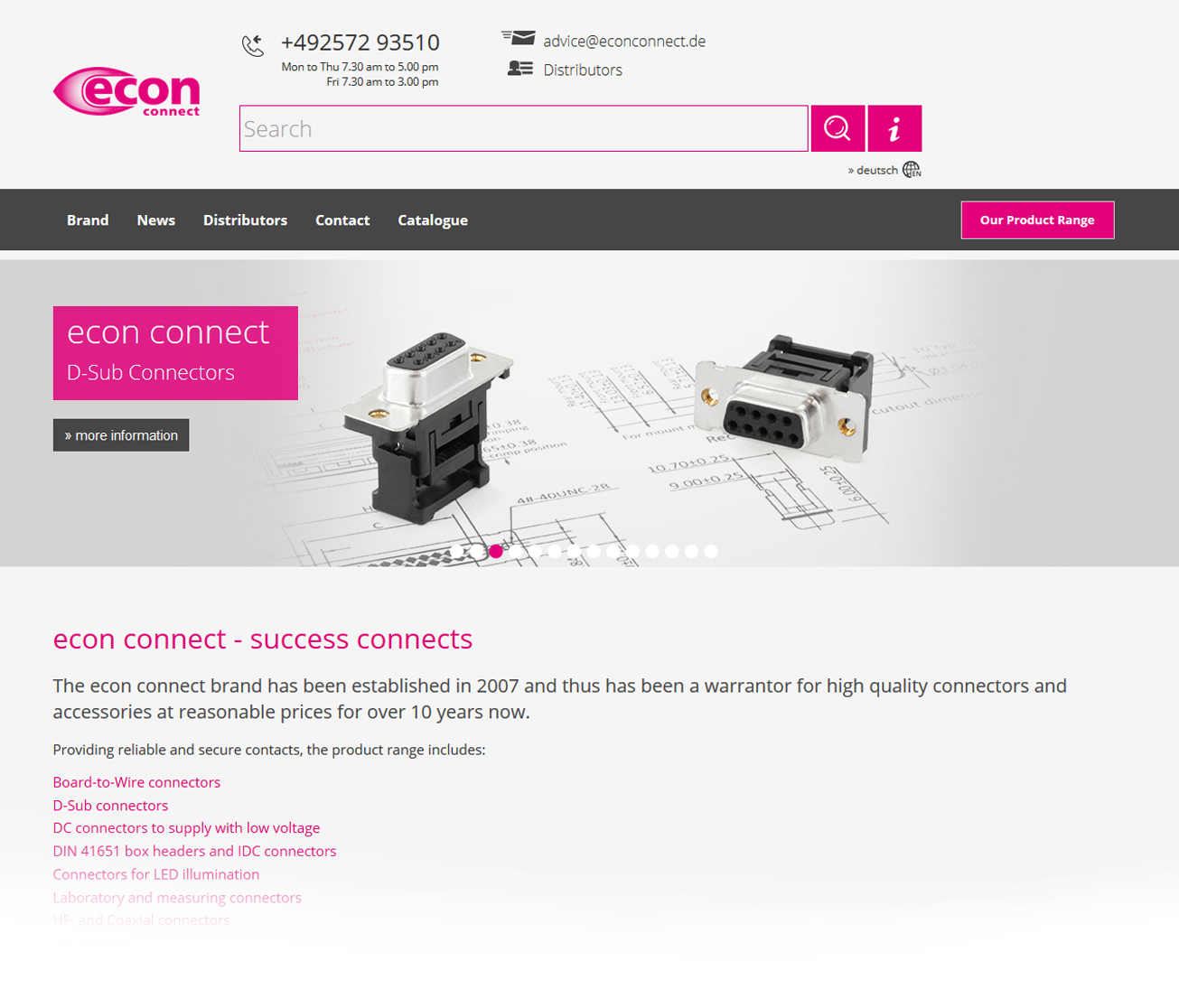

You can also find the entire econ connect range at our online store.

Cooperating with notable manufacturers we offer products under the econ connect label.

With our exclusive brand econ connect you are counting on quality.

Together with our special service we are able to offer you existing, high quality products at best conditions.

We continuously expand our econ connect product range!

Benefit from the advantages:

  • highest flexibility by different versions
  • excellent price-performance ratio;no brand surchage
  • 100% traceability of the product batch
  • special quality control of all in- and outgoing products
  1. 08.03.2024 - USB-C - The upcoming standard for mobile interfaces

    The USB type C connector has long since become the standard for connecting and powering the latest generation of devices. USB-C has also become indispensable when it comes to ultra-fast data exchange.

    econ connect offers you various versions of built-in sockets with type C plugs. You can choose between straight and angled versions for SMT mounting. Kinked versions and waterproof USB-C panel sockets round off the range.

    You can find all information about these USB-C 3.1 sockets here.

    Corresponding USB 3.x connection cables are also available.

    Transfer rates of up to 20 Gbps are possible here. A maximum output of 100 watts ensures fast charging of the connected devices.The black cable sheath is made of TPE and is therefore flexible for mobile use.

    An overview of all available versions and lengths as well as further technical information and data sheets can be found in our online store.

    We are happy to support you with your special requirements regarding individual lengths, colors and connector combinations with our technical expertise from over 13,000 assembly projects.

    As usual, we ensure the long-term availability of items to ensure a constant supply throughout the product life cycle.

    If you have any questions about these products, your customer advisor will be happy to help. You can see the entire range of our quality brand econ connect here.

  2. 27.02.2024 - The new waterproof USB-C built-in socket from econ connect

    econ connect now offers a waterproof USB-C panel jack in its standard range.

    The new angled version is suitable for SMT mounting and is protected against the ingress of water and similar liquids by the circumferential sealing ring and an internal seal once it has been installed in your application.

    The USB 3.1-compliant socket is designed for a temperature range of -40 °C to +80 °C, which offers a wide range of possible applications.

    The gold-plated contacts and maximum insertion and tensile forces of 20 N ensure a secure connection to your application.

    You can find all information about this USB-C 3.1 socket in our online store. In addition to the waterproof version, standard versions are also available here.

  3. 19.02.2024 - New in our product range: The 1.27 mm WTxGSR1 series from econ connect

    You can now find the new WTxGSR1 series SMT box headers from econ connect in our standard stock range.

    Available in pole numbers from 10 to 40 poles, they are assembled using the SMT soldering process. The placement aids for automatic processing are already mounted on the component.

    Thanks to temperature ranges from -40 °C to +105 °C and the gold-plated connection pins, there is a wide range of possible applications and environmental conditions.

    An overview of the available versions, further technical details and data sheets can be found in our online store.



    PS: These PCB box headers are the perfect complement to the corresponding counterparts for cable assembly - our PCxG1 series IDC connectors with a 1.27 mm pitch.

  4. 15.02.2024 - NEW: The ECON CONNECT catalogue!

    Our current product overview of all articles from econ connect in a flip page catalogue.

    New in this catalogue are among others:

    • Laboratory & Measuring Connectors
    • DIN 41651 Box Headers
    • Modular Plugs shielded
    • USB 3.1 Sockets SMT Type C
    • Patch Cables Cat.6a
    • USB 4 Gen 3x2 Connection Cables
    • Cable Fixing

    Benefit from our extended service of the digital catalogue:

    • all technical information at a glance
    • high-resolution drawings and images
    • save individual data sheets as PDF
    • direct links to our online shop

    You can also find the entire econ connect product range in our online shop.

  5. 17.01.2024 - As varied as your purpose: The individual pin headers from econ connect

    In addition to an extensive range of standard pin headers, the connector specialist econ connect also has options for procuring special designs entirely in accordance with your individual dimensional drawings.

    Starting from minimum order quantities of 1000 pieces, you can have pin headers manufactured in 1.0 mm / 1.27 mm / 2.0 mm / 2.54 mm / 3.96 mm and 5.08 mm pitch according to your personal requirements. You are free to determine the pin lengths, number and position of the insulating bodies as well as the number of poles.

    Designs in angled form, as SMT or THT variants and as single-, double- or triple-row versions can be put together by you. Coding by omitting pin positions is also possible.

    In our online store you will find an overview of available standard variants, further technical information and detailed data sheets. Your customer advisor will be happy to help you with your individual design inquiries.

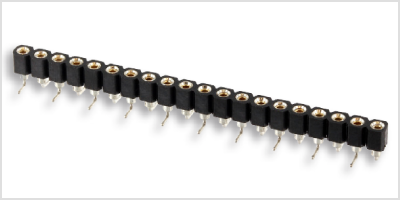

  6. 18.12.2023 - Versatile connection: The BLG/BLW socket strips from econ connect

    Immerse yourself in the world of first-class connection technology with the BLG and BLW series socket connectors from econ connect - the perfect solution for your individual requirements.

    Variety in perfection: Our BLG and BLW series offer you an impressive range of options. Whether single-row or double-row, straight or angled design - we have the female headers that can be seamlessly integrated into your application.

    Precision in 2.54 mm pitch: The exact design in 2.54 mm pitch ensures maximum precision and compatibility. Whether you are planning a simple or complex design, our female headers provide the ideal basis for a reliable connection.

    Flexible number of poles: From 2 to 80 poles - our socket connectors adapt flexibly to your requirements. No matter how large or small your project is, econ connect offers the right solution for your individual needs.

    Econ connect stands for quality and reliability in connection technology. Rely on our female connectors to optimize your projects and create reliable connections.

    You can find an overview of the variants, further technical information and data sheets in our online store.

  7. 13.10.2023 - Robust and economical: The DIN 41651 connector system

    The DIN 41651 connector system is known for its reliability and ease of use. Econ connect offers a complete range of this robust connection solution for wire-to-board connections via ribbon cable.

    The connector system has proven itself over the years and is used today in all areas of electronics.

    The connection to the printed circuit board is provided by box headers with or without locking option as THT or SMT versions as well as with transition connectors. Angled box headers provide more flexibility on the PCB. The connection to the flat cable can also be made by an IDC socket.

    With pitch dimensions of 1.27 mm, 2.0 mm as well as 2.54 mm, this system can be easily integrated into existing connection environments and is characterized by low space requirements.

    An overview of the extensive product range as well as further technical information can be found in our online shop.

    For these articles we offer you the possibility to request corresponding cable assemblies directly at the article.

    Look for this symbol - a click on it opens the clearly arranged inquiry form.

  8. 02.10.2023 - Now available from stock: The new cable tie series from econ connect

    econ connect, the specialist for connector solutions and accessories for electronic devices,
    is expanding its stock range with a large selection of new cable tie series.

    The cable ties made of polyamide 66 (PA) withstand high tensile forces of up to 80N and
    can be used in a wide temperature range from -35°C to +85°C.

    The cable ties are available in various lengths and dimensions from 100x2.5mm to 370x7.6mm.
    Different color codes help to organize your cable bundles.

    An overview of the variants available from stock as well as further technical information and
    data sheets are available in our online shop.

  9. 25.09.2023 - Replace components easily: The IC flat sockets from econ connect

    The IC flat sockets from econ connect are suitable for all components in DIL/DIP housings that are to remain flexibly exchangeable on the PCB. The sockets, which are equipped with machined pins, impress with their precision manufacturing and hold the plugged-in components securely in place, even in the event of strong vibration.

    The open insulating body still allows access to the PCB and at the same time ensures optimum cooling. The special pin design 100% prevents flux from entering the mating zone. A wicking effect is also avoided.

    With pole numbers from 6 pole to 40 pole and mating widths of 7.62 mm, 10.16 mm and 15.24 mm, the longitudinally and laterally stackable sockets are suitable for all common components in DIL/DIP housings.

    An overview of the available versions as well as further technical information and data sheets can be found in our online store.

  10. 13.09.2023 - Professional quality: The HDMI cable series from econ connect

    Ever more sophisticated hi-fi equipment in home cinemas and more demanding graphics applications in multimedia environments demand ever better and qualitatively perfect transmission possibilities between source and playback devices.

    With the HighQuality HDMI cable series from econ connect even high demands for error-free transmission with crystal clear picture and sound signals are satisfied. The cables manufactured according to the HDMI standard 2.0b fulfill the following requirements with the support of 3840x2160 pixels at 60Hz (4:4:4) UltraHD 4K, while providing support for 3D, HDCP2.2, EDID, HDR, ARC, CEC, EMI, Dolby TrueHD and DTS-HD.

    Low-oxygen copper material for all signal lines, gold-plated contacts and connector housings as well as double shielding against external interference ensure loss-free transmission of the data to be transmitted even with cable lengths of up to 10 m. Not least because of a maximum transmission rate of 18 Gbps these premium cables set standards in the field of high-end signal transmission.

    You can find more information about this series within our webshop.

  11. 28.08.2023 - The right distance is what counts: Spacer Bolts by econ connect

    These useful helpers for your PCB constructions always keep your assemblies at the right distance.

    Made of nickel-plated brass, the bolts are available with M3 internal/internal thread or M3 internal/external thread in the wrench size of 5 mm.

    In our online shop you will find the articles in different lengths and packaging variants.

  12. 19.07.2023 - Under voltage: The power cables from econ connect

    The connector specialist econ connect offers a complete range of common power cables for the European and international market.

    In addition to power cables with CEE 7/7 safety plugs in straight and angled versions for the connection of cold appliances via C13 sockets, the range also includes connection cables with CEE 7/16 Euro plugs and standard 8-form C7 sockets.

    For own assemblies protective contact and 8-form connectors with open cable ends are also available.

    In addition, econ connect offers power cables for Switzerland, Great Britain and the USA in different versions.

    Depending on the type, harmonized cables according to H03VVH2-F, H05VV-F and SVT 3/C are used in cross-sections from 0.75 qmm to 1.0 qmm or 18AWG.

    An overview of the available products as well as further technical information is available in our online store.

  13. 06.06.2023 - As universal as your application: The USB connector series from econ connect

    It is impossible to imagine computer systems without the universal serial bus. Almost every peripheral device has at least one interface according to the USB standard, thus enabling uncomplicated and secure use of the hardware.

    In the development of devices and systems, USB interfaces are therefore often used due to the easy parameterization and uncomplicated requirement of mechanical specifications.

    econ connect offers a wide range of USB connector series according to all common standards. Whether simple USB 2.0 Type A sockets for PCB mounting, stacked USB 3.0 sockets or current USB 3.1 Type C variants - econ connect can provide you with the right solution for all common USB generations.

    Depending on the type and design, mounting is possible for the PCB as SMT, THT or via solder connection.

    An overview of all available articles, dimensional drawings, PCB layouts and further technical data can be found in our online store. If your preferred variant is not listed, your customer advisor will be happy to help you.

  14. 10.05.2023 - Space in the network cabinet!

    Modern network infrastructures are sometimes very extensive and not only place high demands on the transmission performance of the individual components. The space required also plays an important role, as more and more hardware has to provide the necessary capacities in ever smaller spaces. This is where the Cat.6A slim patch cables from econ connect come into play.

    With a sheath outer diameter of just 3.6mm, they take up very little space in network distributions, but at the same time offer performance that compares favorably with the patch cables normally used.
    Certification to EIA/TIA 568-C Cat.6A is a matter of course, as is passing the Fluke Channel Link Test to ISO 11801. The U/FTP shielding and conductors made of pure copper ensure the necessary performance.

    The outer jacket made of a halogen-free material mixture as well as further certifications according to ISO/IEC 11801:2002 ClassEa, ISO/IEC EN 50173 ClassEa, IEC 60603-7-51, IEC 60754-2 and IEC 61034 ensure full usability even in demanding installations.

    The patch cords are available in various colors and lengths. An overview of the available types, further technical information as well as data sheets are available in our online shop.

  15. 28.02.2023 - Data cables of our quality brand econ connect

    In our EVE PAGER we offer you a selection of current cables for data and signal transmission.

    Whether patch cables of various categories, HDMI cables for 4K image transmission or USB 3.2 cables for exchanging large amounts of data at high speed: econ connect offers the right solution for your project and application.

    Your advantages:

    • directly orderable via our online store
    • delivery of samples for pilot series
    • attractive conditions tailored to your needs


    We keep a large assortment in stock for you.

    If your requirements are not covered by our standard range, talk to your personal customer advisor about the necessary specifications. Individual lengths, colors or technical characteristics can often be realized for you in exclusive assemblies.

  16. 20.02.2023 - Internationally applicable: Cat.6a UL CMX patch cables

    For the international market, econ connect offers Cat. 6a patch cables according to UL CMX, thus fulfilling the customer's wish to have UL-certified connection cables available even for higher performance requirements.

    The S/FTP cables with pair shielding are equipped with gold-plated contacts in the connector. Stranded wires with a cross-section of 27AWG as well as molded strain reliefs with snap-in lever protection offer flexible application possibilities. The cables are designed according to Cat. 6a for up to 500 MHz.

    Further technical information as well as data sheets can be found in our online shop.

  17. 16.01.2023 - For good communication: The modular connectors from econ connect

    RJ connectors have been the standard in computer network and telecommunications cabling for decades. The US-American standard has been able to establish itself thanks to its simple, robust and at the same time reliable design.

    econ connect offers you the complete range of RJ connectors for use in your devices or for assembling your cable solutions. Receptacles for PCB mounting in SMT or THT design as well as connectors in shielded or unshielded variants for cable assembly are available. The common standards from RJ10 (4pin), RJ11 (6pin) over RJ45 (8pin) up to RJ50 (10pin) are available.

    An overview of all available versions as well as further technical information and data sheets can be found in our online store. Many of the articles can also be selected immediately as components for a cable assembly request:



  18. 20.12.2022 - New in the range: Cat.6a and Cat.8 connectors from econ connect

    The new Cat.6a and Cat.8 connectors round off the range of connectors for network and telecommunications technology from econ connect.

    Compact dimensions still allow cable diameters of up to 6.5 mm and strand diameters of up to 22AWG. The connectors can be clearly identified by means of colored bend protection sleeves.

    Suitable tools, bend protections, technical data sheets and further information are available in our online store.

    In addition you will also find the option of directly requesting your desired cable assembly. Clicking on the "Cable assembly" button will take you to the request form:

  19. 26.10.2022 - Selected data & power cables from econ connect

    For you we have created two more EVE PAGER. Browse through a selection of patch cables, USB cables, HDMI cables and various power cables from our quality brand econ connect.

    In the flip page catalog "Data cables" you will find among others:

    Patch cables

    • Cat.6 in different colors
    • Cat.6a extra Slim for easy accessibility in the patch field and
    • Cat.6a with UL certification
    • Cat.8.1 for data transmission up to 40 Gbit/s


    USB 2.0 cables & adapters

    • various connection cables - also with gold-plated housing
    • both sides C connector exclusively with printed econ logo
    • compact adapter A male to C female


    USB 3.2 cable

    • connection cable with SoftTouch due to TPE jacket
    • extension cable C male to C female for transfer rates up to 20 Gbit/s


    HDMI 2.0b cable

    • Ultra HD HDMI connection cable for a safe transmission up to 10 m length



    The flip page catalog "Power Cables" offers you:

    Cables with Euro or Schuko plug

    • Power cables with open end for the suitable assembly of your application
    • Versions with straight or angled Schuko plug
    • Connection to cold devices (socket C13)
    • Extensions up to 5 m
    • International connections


    All power cables can be manufactured in different lengths, cross sections and sheath colors. It is also possible to add ferrites.

    Ask your account manager for individual designs!

    A huge selection of other cables and adapters can be found in our online store.

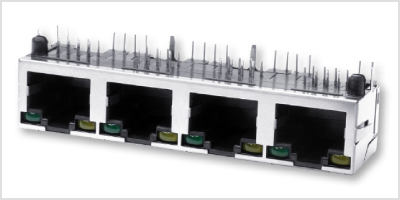

  20. 07.10.2022 - The much better connection: Multiport RJ45 jacks from econ connect

    With the multiport RJ45 jacks, econ connect offers powerful connection solutions for your network or telecommunications applications.

    Available are fully shielded modules with 2 to 16 ports in vertical and horizontal design as single or double row. With the FR52 high temperature housing, processing in wave soldering systems as well as in reflow ovens is possible without any problems.

    Optionally, variants with LED equipment and various shielding plate designs are available. If you have special requirements, please ask your account manager for your specifications.

    An overview of the types available from stock can be found in our online store.

  21. 12.09.2022 - Board-to-Wire components of our quality brand

    Board-to-Wire components of our quality brand econ connect!

    In our EVE PAGER we offer real alternatives for a range of connectors from the Japanese manufacturer JST.

    Your advantages:

    • directly orderable via our online store
    • delivery of samples for pilot series
    • attractive conditions tailored to your needs


    We have a wide range of such connectors available. Housings, the suitable crimp contacts and corresponding pin headers are available in various pitches. The orientation is straight or angled. Depending on the type, the board-to-wire connectors allow cable connections with different cable diameters.

    Turn the page right now with our new EVE PAGER!

  22. 25.07.2022 - 20 years of HDMI Standard

    In home cinema as well as in the PC sector, it connects monitors and graphics cards and transmits sound and image simultaneously: the HDMI cable. The standard was first developed 20 years ago

    With the latest generation of these cables from our quality brand econ connect, even high demands for error-free transmission with crystal-clear image and sound signals are satisfied. Manufactured in accordance with HDMI standard 2.0b, the cables meet the highest standards with support for 3840x2160 pixels at 60Hz (4:4:4) UltraHD 4K while offering support for 3D, HDCP2.2, EDID, HDR, ARC, CEC, EMI, Dolby TrueHD and DTS-HD.

    Low-oxygen copper material for all signal lines, gold-plated contacts and connector housings, as well as double shielding against external interference ensure loss-free forwarding of the data to be transmitted, even with cable lengths of up to 10 meters.  Not least due to a maximum transmission rate of 18 Gbps, these premium cables set standards in the field of high-end signal transmission.

    You can find all information about this HighQuality series and other HDMI cables in our online store.

  23. 22.06.2022 - All at at glance - the new econ connect flip page catalogue

    For all those who like to browse on screen: The new digital product catalogue


    Our current product overview of all articles from econ connect in a flip page catalogue.

    New in this catalogue are among others:

    • revised range of low voltage and telephone connectors
    • Board-to Wire connectors pitch 2.5 and 3.96 mm
    • USB 2.0 adaptors


    Benefit from our extended service of the digital catalogue:

    • all technical information at a glance
    • high-resolution drawings and images
    • download individual data sheets as PDF
    • direct links to our online shop


    You can also find the entire econ connect product range in our online store.

  24. 06.05.2022 - Cat. 6A slim patch cables from econ connect

    Modern network infrastructures are sometimes very extensive and not only place high demands on the transmission performance of the individual components. The space required also plays an important role, as more and more hardware has to provide the necessary capacities in ever smaller spaces. This is where the Cat.6A slim patch cables from econ connect come into play.

    With a sheath outer diameter of just 3.6mm, they take up very little space in network distributions, but at the same time offer performance that compares favorably with the patch cables normally used.

    Certification to EIA/TIA 568-C Cat.6A is a matter of course, as is passing the Fluke Channel Link Test to ISO 11801. The U/FTP shielding and conductors made of pure copper ensure the necessary performance.

    The outer jacket made of a halogen-free material mixture as well as further certifications according to ISO/IEC 11801:2002 ClassEa, ISO/IEC EN 50173 ClassEa, IEC 60603-7-51, IEC 60754-2 and IEC 61034 ensure full usability even in demanding installations.

    The patch cords are available in various colors and lengths. An overview of the available types, further technical information as well as data sheets are available in our onlineshop.

    In our 1-Pager you will find all important information about our Cat.6A slim patch cables from econ connect at a glance:

  25. 02.05.2022 - Compatible with all standard pin headers: The CG connector system from econ connect

    For the simple yet reliable connection of stranded wires and pin headers, the CG connector system from econ connect offers various options for different applications.

    The connectors with a pitch of 2.54 mm are fully compatible with all standard pin headers from the econ connect range and are available as single-row or double-row types. With numbers of poles from 4 to 40, even complicated connections can be made. The contacts used can handle up to 3 A at 250 V and are suitable for stranded wires from 28AWG to 22AWG (or comparable metric dimensions).

    In the double-row housings, the integrated coding lug already provides protection against reverse polarity as standard. The single-row versions can be retrofitted with optionally available coding pins.

    The associated crimp contacts are available both as roll sections for manual processing and as rolls for fully automatic processing.

    An overview of all available types, further technical details as well as data sheets are available in our online store.

  26. 07.04.2022 - D-Subminiature Connector

    Even almost 70 years after its development by the US-American company Cannon, the trapezoidal connector system with the name D-Subminitature (short "D-Sub") is still indispensable in the world of electronics. The extremely robust and reliable over the decades, connectors have established themselves in mechanical and plant engineering as well as in all areas of electronic control and regulation technology can assert and hold. Various mounting options and different designs make these products still interesting for a variety of applications.

    econ connect offers you a complete range of the available variants from stock. You can choose between mounting by solder cup, as select IDC contact for ribbon cable, crimp connection or solder pin for the printed circuit board. The common pole numbers from 9 to 37 poles are available. The mounting on the housing can be done optionally by prefabricated threads by bolts and  screws or rivets.

    Wide temperature ranges from -40°C to +70°C, operating currents of up to 1A and more than 500 possible mating cycles make this connector system reliable to use in more demanding conditions and are often superior to more sophisticated connection solutions in harsher environments.

    econ connect not only supplies the plug-in components. Accessories such as hoods, grommets, bolts and thread sets complete the range.


    Further information and an overview of the products can be found in our online shop.

  27. 02.02.2022 - Low voltage and telephone connectors from econ connect

    With the extension of its product range by low voltage and telephone connectors, econ connect now provides high-quality products for use in the fields of measurement & testing and model making.

    The HOB25 series includes H0 sockets with 2.5 mm bore for insulated installation, are suitable for operating voltages of up to 60 V and can be loaded up to 10 A. The nickel-plated contact made of brass and the insulating bodies made of ABS, which are available in different colors, ensure a safe connection.

    With the HOS25 series, the matching H0 connector is available for direct mounting on stranded wires and wires. The possibility to connect two stranded wires is offered by the complementary H0 couplings of the HOK25 series.

    With the series TB40 mounting sockets for 4 mm banana or multiple spring plugs are available. An operating voltage of up to 60 V with a load capacity of up to 24 A provide for flexible application possibilities. This series is also available in different colors for reliable coding.

    An overview of the available versions, further technical data and data sheets are available in our online store.

  28. 24.09.2021 - Transfer rates of up to 20 Gbps - The new USB 3.2 cables from econ connect

    USB 3.x and the type C plug is becoming the standard for mobile USB interfaces. A Europe-wide standardization of charging sockets to this standard is only a matter of time.

    econ connect offers you the complete range of common USB 3.x connection cables with Type-C plugs. As a variant with Type-C plugs on both sides according to USB 3.2, transfer rates of up to 20 Gbps are possible.
    The E-mark chip used ensures a max. possible power of up to 100 W and thus for contemporary fast charging of connected devices.

    In addition, cables are available with type C to type A for data transfer as well as type C male to female as an extension option for the connection socket. The black cable sheath is made of TPE and thus flexible for mobile use.

    An overview of all available versions and lengths as well as further technical information and data sheets are available in our online store.

  29. 23.09.2021 - USB 3.1 Type C chassis connector - available immediately from stock

    USB has made life much easier for all computer users in many ways.

    USB Type C connectors are increasingly being used to connect and power the latest generation of smartphones and laptops.

    USB-C defines smaller, non-twisting connectors with more contacts. These enable higher charging currents and voltages and, in addition to USB, also transport Thunderbolt, DisplayPort, PCI Express or analog audio signals. USB Type C also eliminates the need to differentiate between the device and host sides, since both sides have the same connector.

    In our onlineshop you will find a selection of USB 3.1 Type C chassis connectors for the PCB. All types are available directly from stock.

  30. 30.08.2021 - Precise connection: The new SMT pin headers from econ connect

    With the new SMT pin headers from econ connect, versions with a pitch of 2.54 mm are now available in Tape&Reel packaging for automatic processing.

    The special packaging enables efficient and simple use in automated assembly processes. The pin headers are available with different numbers of poles and thanks to the plastic body made of nylon 6T, they are also suitable for reflow soldering processes. A max. operating current of 3 A and possible operating temperatures of up to 105°C allow flexible use in various applications.

    Other versions, such as THT or angled variants, are also available in addition to matching female connectors.

    An overview of the available versions as well as further technical information can be found in our online store. If the specifications you are looking for are not listed, please contact your customer advisor.
    Econ connect also supplies special requirements in economical minimum quantities with manageable delivery times.

  31. 09.08.2021 - Small in dimensions - big in performance: DC connector systems

    With the DC connector system from econ connect, reliable low-voltage connectors are available for the power supply of your devices and circuits.

    For direct PCB mounting or as a variant for installation in panels, these products offer a wide range of applications. The panel connectors are available for mating parts in the common dimensions from 1.0mm to 2.5mm. Even the smallest versions can transmit currents of up to 2A.

    An overview of the available range, further technical information and data sheets can be found in our onlineshop.

  32. 11.06.2021 - For efficient lighting: The LED connectors from econ connect

    Whether in professional installations or in private homes, LED lighting has become indispensable thanks to its efficient light output and very flexible application options. LED light sources are available on the market today in a wide variety of designs and colors.

    With an extensive range of LED connectors, econ connect supports you in the planning and construction of your own LED illuminants. The product portfolio ranges from simple SMT 2-pole headers with a pitch of 2.54 mm to special LED connection terminals to IDC receptacles with a pitch of 4.0 mm.

    An extended temperature range of up to -55°C to +125°C and operating voltages of up to 320 V at 9 A depending on the type allow very flexible use even in demanding environments. For automated processing, many versions are also available on reel with PP-pad.

    An overview of all available versions as well as further technical information is available in our online store.

  33. 04.05.2021 - The fast and simple connector solution with a pitch of 2.54 mm

    As individual as the requirements in your application: The CV series from econ connect.

    With a pitch of 2.54 mm, this pre-assembled wire-to-board solution offers an economical and reliable way to solve simple connection problems.

    The pre-assembled stranded wires according to UL 1007 with a cross-section of 24AWG and a length of 30 cm PS series already eliminate one step in the production of individual connections for you. The wide temperature range from -25°C to +85°C and operating voltages of max. 250 V at 3 A ensure a wide range of applications. The connectors are available in pole numbers from 2 pin to 20 pin.

    If you would like to be even more flexible, econ connect also offers the CV series with housings and suitable contacts for your own assembly.

    With the pin headers of the PSLxG and PSLxW series, econ connect completes this connector system. Also with a pitch of 2.54 mm, these series provide a secure connection to the PCB.
    The pin strips are available in straight and angled versions.

    Did you already know? With just one click, you can select these and other items from our webshop as components for a cable assembly request and thus obtain, for example, individual assignments or strand lengths:

  34. 13.08.2020 - USB cables by econ connect

    Most external devices such as hard drives, memory sticks or mobile phones are now connected to the computer via the USB interface.

    The connection is made with a USB cable. Here the interface on the PC is standardized, external devices have different types of connectors.

    In our online shop we offer you an extensive selection of USB cables of our quality brand econ connect.

    Different connectors, colours and lengths are available directly from stock.

    USB 2.0 connection cable

    • U2ZABxG (USB-A male to USB-B male) black with gold-plated outer conductor
    • U2ZABx (USB-A male to USB-B male) beige
    • U2AAx (2 x USB-A male) beige
    • U2ZABMx (USB-A male to Micro USB-B male) black


    USB 2.0 extension cable

    • U2AMFx (USB-A male to USB-A female) beige


    Suitable USB connectors from econ connect can also be found in our online shop.

  35. 18.05.2020 - No waste of space: The new Cat.6A slim patch cables from econ connect

    Modern network infrastructures are sometimes very extensive and not only make high demands on the transmission performance of individual components. The necessary space requirements also play an increasingly important role, as often more hardware must provide the necessary capacities in a smaller space.

    Here come the new Cat.6A slim patch cables from econ connect.

    With an outer sheath diameter of just 3.8 mm, they take up very little space in network distributions, but at the same time offer performance that can be compared to the usual patch cords.

    EIA/TIA 568-C Cat.6A certification is a matter of course, as is passing the Fluke Channel Link Test acc. to ISO 11801. The U/FTP shielding and conductors made of pure copper provide the necessary performance.

    The outer sheath is made of a halogen-free material mixture and other certifications according to ISO/IEC 11801:2002 ClassEa, ISO/IEC EN 50173 ClassEa, IEC 60603-7-51, IEC 60754-2 and IEC 61034 ensure that the system can be used even in demanding installations.

    The patch cables are available immediately in different colours and lengths in our Internet shop. If your length and colour combination is not listed, please contact your customer advisor about an individual offer.

  36. 04.05.2020 - Reliable classics from econ connect

    The classic IDC socket connectors and PCB connectors from econ connect are suitable for a cost-effective connection of printed circuit boards or displays.

    The connector system for flat ribbon cables has long proven itself and is used in a wide range of applications such as measurement, control or medical technology. The robust design also allows for use in harsher environments.

    econ connect offers a complete range of products with different pitches (1.27 mm to 2.54 mm) and pole numbers between 6 and 64. The IDC socket connectors can optionally be equipped with a bracket for strain relief of the attached cable. This increases the safety of your plug connection even in critical areas.

    You can find these classics, as well as matching ribbon cables and other accessories in our Internet shop.

  37. 28.02.2020 - Available from stock: High Speed Premium Patchcord of the category 8.1

    Modern IT infrastructures place ever increasing demands on every single component in the network. The use of state-of-the-art hardware platforms can only be efficient if the data flow within a LAN is smooth and stable. The high-performance connections used must also meet the latest standards.

    For this purpose econ connect offers patch cables of category 8.1.

    Double shielded, twisted copper cables are used, where each pair of wires has its own shielding in addition to the overall shielding of the cable.

    The development of category 8.1 components is based on Cat 6 and is therefore plug-compatible with RJ45. However, Cat 8.1 connectors have a much more complex design than classic RJ45 connectors, since a built-in circuit controls connection parameters such as crosstalk and attenuation.

    The patch cables are available from stock in various lengths in our online shop.

  38. 13.12.2019 - Available from stock: Spacer Bolts by econ connect



    The useful helpers for your PCB designs are now available from stock.

    Made of nickel-plated brass, the bolts are available with M3 inner/inner thread or inner/outer thread
    in wrench size 5.

    In our online shop you will find the items in different lengths and packaging variants.

    If you have any questions, please do not hesitate to contact your customer advisor.

  39. 17.04.2018 - econ connect - The new Website is online

    We have completely redesigned the homepage of the quality brand econ connect for you.

    Learn everything about the brand, the product range, distributors, news on electronics and contact details.
    You can get a catalogue as a PDF file or soon also as a print version.

    Below, please find the most relevant new features in detail:

    The homepage - your entry into the world of econ connect

    • modern
    • clear
    • well structured
    • informative



    The list view - an overview of all products of the selected category

    Here you have already the option

    • to define filters to find your desired product
    • to download the respective datasheets
    • to inquire a product
    • to test your connectors in advance - no problem thanks to the sample request
    • to check the current stock of our distributor



    The item comparison - find differences between products at a glance

    • direct comparison of any number of products
    • single items can be removed from the comparison
    • fitting products can be inquired directly
    • a sample reqest is also immediatly possible



    The product view - all the relevant details

    • precise description including packing unit and weight
    • with high-definition picture of the product
    • drawing with the most relevant dimensions
    • all relevant electrical and mechanical data
    • overview of all similar items of the product

    Here you can also directly download a detailed datasheet, inquire the product, request a sample or check the stock for availability.



    The datasheet - final test for your application

    • complete technical data including a large drawing and a product image
    • measurement charts for varying dimensions
    • order information containing all possible variants of the product



    See for yourself - we are looking forward to meeting you! en.econconnect.de

Components of the manufacturer
