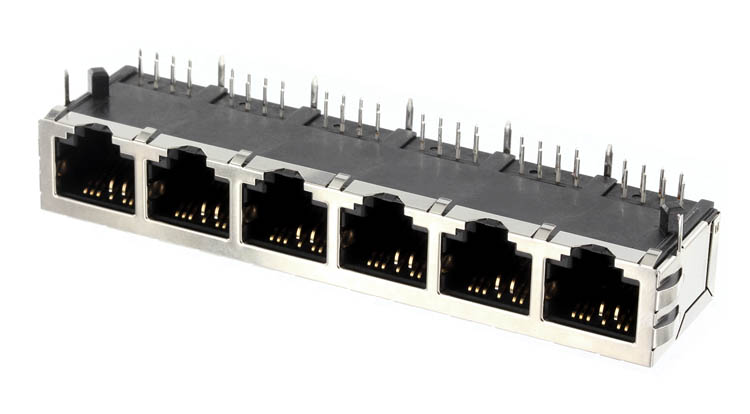

Multiport Jacks

Stewart Connector offers CAT 3 and CAT5e Harmonica Jacks™. Bel Stewarts space-saving multiport modular jacks offer the most features for the maximum reliability and performance you need for today’s integrated data systems from the central office all the way through to your mobile applications.


The enhanced shielding provides optimum protection against EMI, and the unique panel tabs provide a high normal force for superior shielding effectiveness. The longer springs allow repeated insertions /withdrawals from a panel, and prevent “fish hooking” on the panel during insertion.

All of the Bel Stewart Harmonica style modular jacks can be equipped with EPP-918A contact dressing to increase the durability of the contacts to withstand heavy insertions and extractions of the mating plugs and provide increased protection in harsh environments.

  1. 17.02.2020 - New: The standard range of Stewart Connector and Bel Magnetic Solutions

    From now on you will find all standard articles of the manufacturer Stewart Connector and Bel Magnetic Solutions in our online shop by searching with the manufacturer's name.

    In addition to current prices and delivery times you will also find the manufacturer data sheets for the articles. (Example: SS-60400-014)

    Stewart Connector and Bel Magnetic Solutions are subsidiaries of the listed American manufacturer Bel Fuse Inc. and each offer a wide range of ethernet connectors.

    The fuses from Bel Fuse Circuit Protection are of course still part of our product range. Just search here too using the original manufacturer's name.

    If you have any questions, your personal customer advisor will be happy to help you.

  2. 25.10.2019 - Stewart Connector now also offers M12 connectors

    Stewart Connector, well-known manufacturer of high-speed connectors used in Data Communication applications announces the release of their M12 A-Code Series, targeting environments where rugged connectors are needed.

    The M12 A-Code product line from Stewart Connector are standard products used in industrial automation, outdoor applications, measurement and control, agriculture and more. A-code M12 connectors are often used for sensors and DC power.

    The entire product line is IP67 rated when installed, adding to the reliable nature of these connectors in an industrial environment. IDC and soldering termination options offer quick and easy installations, replacements or upgrades.


    Specifications

    • IP67 rated when installed
    • both male and female panel mount receptacles and field terminated options
    • DeviceNet, CANbus and fieldbus primarily use connectors with 4 and 5 pin options
    • A-coding (or keying) within the M12 series prevents mismatching with other M12 coding/keying options
    • Quick and easy installation, replacements, or upgrades


    Products

    • male front panel mount receptacle
    • male rear panel mount receptacle
    • female front panel mount receptacle
    • field terminated plugs with IDCs
    • field terminated plugs with solder cup contacts


    Further information on the individual connectors can be found in the PDF brochure.

    As an authorized distributor of Stewart Connector you can order these new M12 circular connectors from us.

    Your account manager is looking forward to your inquiries.
