Reed Relais

Reed Relais bestehen aus einer gewickelten Kupferspule mit einem Reed Schalter in der Mitte der Spule und eignen sich besonders zum Schalten von Kleinstsignalen für Anwendungen mit folgenden Anforderungen: Lange Lebensdauer, hohe Isolation, geringe Kapazität, sehr gute Hochspannungs- und HF-Eigenschaften.



Produkte:

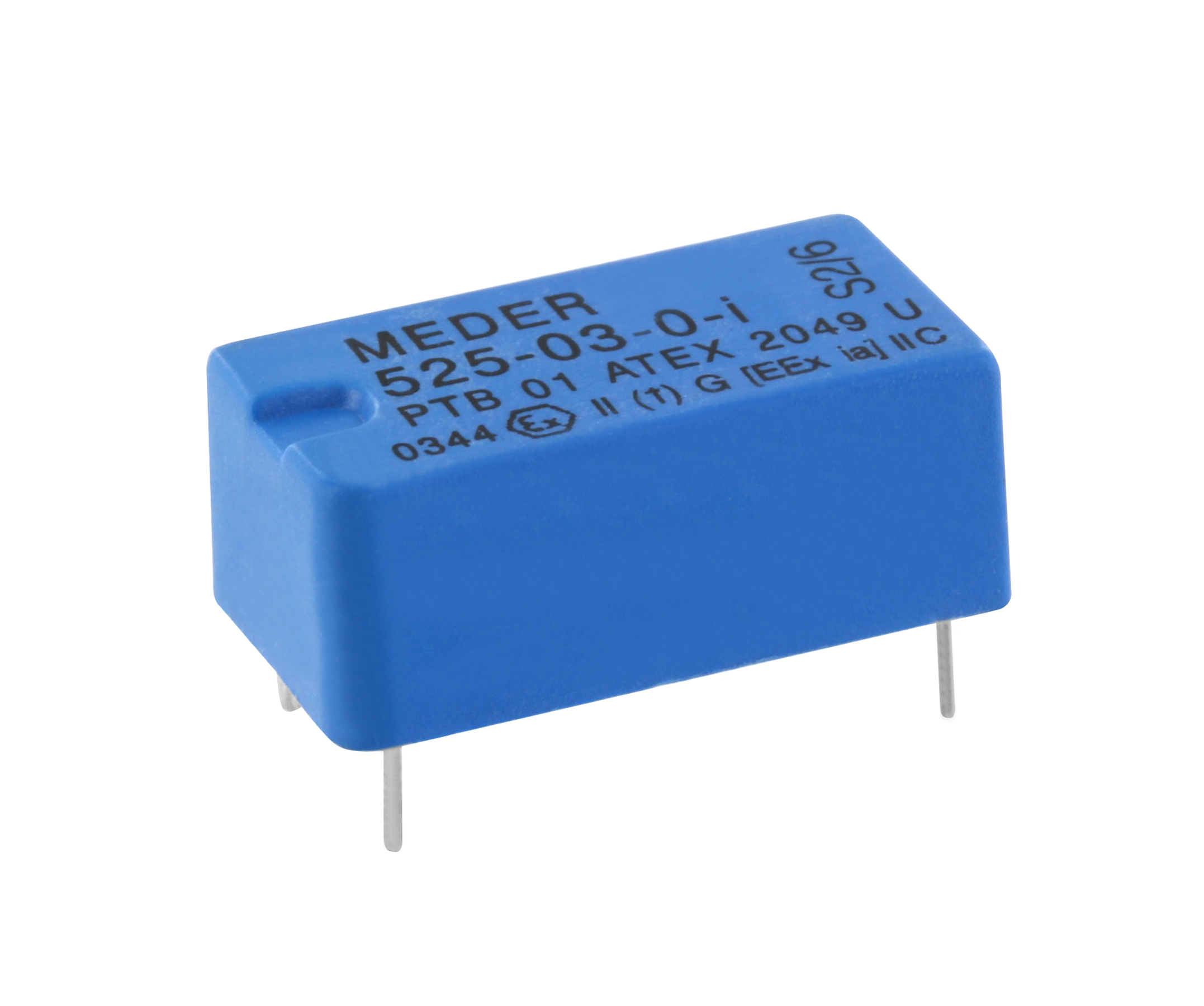

  • ATEX-Zertifizierte Relais
  • High Density Boards
  • Hochfrequenz Reed Relais
  • Hochspannungsrelais
  • Reed Relais 3-8 polig
  • Reed Realis mit hohem Isolationswiderstand
  • Reed Relais Module
  • SMD Reed Relais
  • Thermospannungsarme Reed Relais
  • THT Reed Relais

  1. 14.11.2023 - Smaller and more compact than ever before: The SHV Reed Relay Series from Standex Electronics

    The SHV Reed Relay Series is an improved version of the SIL-HV Reed Relay, which is smaller and more compact. An internal magnetic shield provides high shielding for densely packed matrix arrangements.

    With a high breakdown voltage and a contact resistance of 70 mOhm, the new SHV relay is ideal for high-voltage applications in the field of test and measurement technology. Further improvements include a higher rated power of 100 W, a switching voltage of 1000 VDC, a switching current of 1 A and an insulation and breakdown voltage of up to 4 kVDC. The insulation resistance between coil and contact is 10 TOhm, and there is also an optional protective diode.

    The overmolding has made the relay significantly more resistant to the manufacturing process and everyday use, especially against moisture. Improved resistance is particularly important when using environmentally friendly cleaning agents after the soldering process.

    The new SHV relays are RoHS-compliant and are currently in the process of UL certification.

    Further information is available in our online store.

  2. 17.10.2022 - Compact design: The DIP and SIL Reed Relays from Standex Electronics

    With the DIP and SIL series, Standex Electronics offers a range of compact reed relays for a wide variety of applications, ideally suited for universal use in alternvative energy, medical equipment, telecommunications or test and measurement.

    Different contact types such as 1A/NO (SPST-N.O.), 1B/NC (SPST-N.C.), 1C/Contact (SPDT) or 2A/NO (DPST-N.O.) offer the right function for every application. With a rated power of max. 50 W and available coil voltages of 3, 5, 12, 15 or 24 volts, there are sufficient reserves as well as extensive possibilities for the circuit layout.

    The SIL series reduces the required space by another 50%. This series is also available as an HF version and thus enables interference-free operation in measuring device testing with switching signals up to 1.5 GHz.

    UL certification for both series is a matter of course at Standex Electronics, making them suitable for use in international business.

    In our online store you will find an overview of the available variants, further technical information as well as data sheets.
