Federkontakte
Ein umfangreiches Sortiment verschiedenster Federkontakte und eine hervorragende Verarbeitungsqualität: Viele Kunden setzen auf hochwertige Federkontakte aus dem Hause PTR. In kaum einem anderen Produktbereich ist ein vergleichbar hohes Maß an Präzision notwendig. Federkontakte werden zur elektrischen Prüfung von Leiterplatten, Bauelementen sowie Verdrahtungsfeldern eingesetzt. Beim Einsatz der Federkontakte in speziellen Prüfmodulen können sie zur Prüfung von Steckverbinder-Kabel-Systemen verwendet werden. Weitere Einsatzmöglichkeiten für Federkontakte gibt es in Steuer- und Regeleinheiten oder als Ladekontakt.
ICT-Federkontakte von PTR
Eigenschaften
- Internationaler Standard für 100 mil Applikationen
- Kontaktierung bestückter Leiterplatten
- Große Auswahl an Tastkopfformen

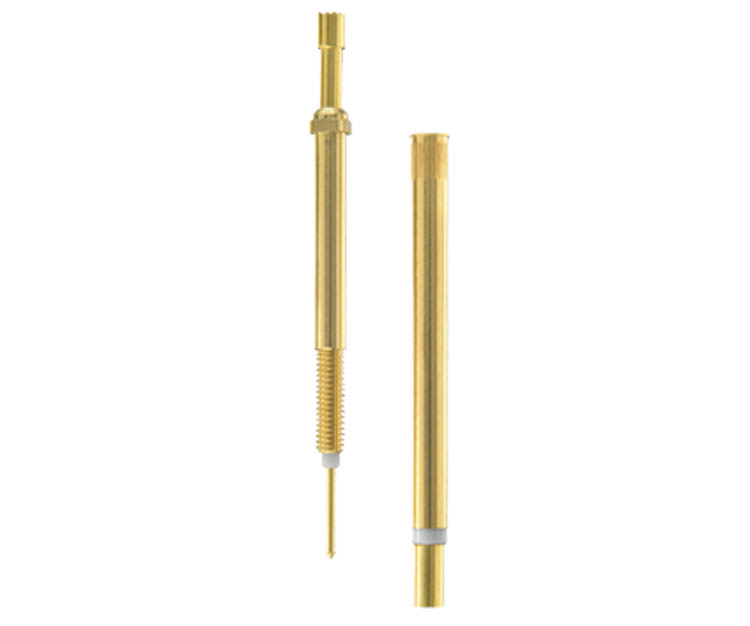

Schaltkontaktstifte von PTR
Eigenschaften
- Schalt-Federkontakt für die Kabelbaumprüfung
- Gewinde-Ausführung
- Schnellwechselsystem
- Verdrahtungsfreies Auswechseln
- Schalthub 4.0 mm
- Löttemperatur max. 300°C
Batterie-Ladekontakte von PTR
Eigenschaften
- Kurze, kompakte Baugröße
- Board to Board Kontaktierung
- Einsatz in Ladeschalen
Pneumatik-Federkontakte von PTR
Eigenschaften
- Kontaktierung einzelner Prüfpunkte
- Kontaktierung ohne Adapter möglich
- Einsatz im Funktionstest
- Verdrahtungsfreies Auswechseln
Hochstrom-Federkontakte von PTR
Eigenschaften
- Einsatz im Burn-In und Run-In Test
- Übertragung hoher Ströme
- Geringe Übergangwiderstände
-
24.02.2023 - A good connection: The PCB terminal blocks from PTR
The application areas of PTR HARTMANN's PCB terminal blocks and PCB connectors are extremely diverse. From automation technology, safety technology and telecommunications to building automation, the products can be used.
PCB terminals are divided into two groups, screw terminals and spring-cage terminals, and at PTR HARTMANN include metric and imperial pitch dimensions from 2.5 mm up to 12.24 mm.
Different connection principles - e.g. the lift principle used for connections that need to be released frequently to the time-saving and innovative push-in technology - the VDE and cURus certified product portfolio covers all requirements.
Special designs of PCB terminal blocks and PCB connectors, such as special lengths for solder pins, different colors, partially assembled PCB terminal blocks, marking with pad printing, inkjet printing or laser marking, are part of the range. The delivery of PCB terminal blocks and pin headers in blister tapes, tubes or on trays is possible also.
An overview of the available series as well as detailed technical specifications can be found in our online store. -
26.11.2020 - AK136 series PCB Multi-Connector for safety applications
With the AK136 series, PTR HARTMANN GmbH offers a PCB multi-connector with 5.0 mm spacing which can be inserted from above – this makes it especially suitable for installation in housings.
The locking guides on the underside allow the AK136 to be fixed in the housing base, and the matching STL136 pin strip is fitted on the PCB in the upper housing part. In safety applications, this allows the power supply to the device to be interrupted when the housing cover is opened.
With its wire protection system, the AK136 clamps solid wires up to 2.5 mm², and stranded wires, with or without a ferrule, up to 1.5 mm². In the standard version (wave soldering), the STL136 pin strip is available as a high temperature variant for THR solutions (as PU and Tape-on-Reel) and also as an SMD variant, Tape-on-Reel, in different pin lengths.
You will find these and other products from PTR HARTMANN GmbH in our internet store.
-
08.05.2020 - PTR interface blocks
Compared to a conventional PCB connector, an interface block as a connecting element has the advantage of a more flexible application and its possible uses are manifold. Starting with board-to-board contacts, directly on the PCB, via hand-held devices, as charging contacts, up to chargers for high-quality laptops, smart phones and e-bikes and a multitude of other applications - everywhere Battery Probes or contacts called Spring Loaded Pogo Pins are used for the transmission of battery charging currents, but also for the transmission of signals.
The contacts in the plastic block are ideally suited to compensate for differences in height and allow a large tolerance range when contacting the counter contact. The interface blocks thus have a large positioning tolerance and compensate for installation tolerances between the components to be connected.
In addition to the SMD variant, PTR HARTMANN also offers THR and soldering variants. These allow a high degree of individual designs and applications.
Spring contacts and other products from PTR Hartmann can be found in our internet shop.
