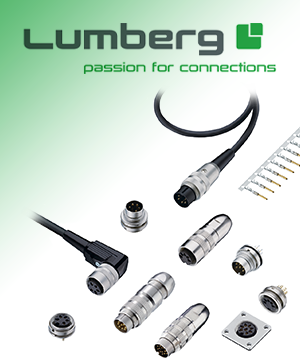

When it comes to high-quality, reliable and robust circular connectors, SV and KV from Lumberg Connect are at the top of the list. These two series offer the ideal solution for a wide range of applications in connection technology.

SV-Series – versatility in perfection

The connectors in the SV series impress with::

• Outstanding electrical properties: with a rated current of up to 5 A (for 3- to 8-pole models) and a rated voltage of up to 300 V, they are ideal for demanding applications.
• Robust materials: Contact pins made of silver-plated and flash gold-plated CuZn ensure excellent conductivity and durability.
• Protection in demanding environments: With a temperature range of -40 °C to +85 °C and a protection rating of IP40 (threaded joint in locked condition), they are prepared for tough conditions.
• Flexibility: Supports cable diameters from 4 to 6 mm and conductor cross-sections up to 0.75 mm² (3 to 8 poles).

The SV series also offers numerous pole numbers and can be supplied pre-assembled (3 to 12 poles) or in individual parts (5 to 7 poles) –
perfect for your individual requirements.


KV-Series – the ideal complement

The KV series couplings are the ideal counterpart to the SV plugs and are characterized by the following features:

• High load capacity: Rated currents of up to 5 A and voltages of up to 300 V (with pollution degree 1) ensure reliable performance.
• First-class workmanship: Manufactured from nickel-plated CuZn and with high-quality PA GF insulation, they offer robustness and stability.
• Precise assembly: M16 threaded joint ensures a secure hold of counterparts, while soldered connections enable easy installation to the cable.
• Reliable protection class: IP40 (in locked and screwed condition) provides the necessary protection.

With a broad portfolio of pin configurations (3 to 12 poles) in accordance with IEC 61076-2-106 and a durable design,
the KV series meets even the highest requirements.
 

Why SV and KV?
The combination of SV plugs and KV sockets enables a safe, robust and durable connection that is convincing in a wide range of applications – from industry to electronics. Both series impress with their flexibility, first-class materials and high performance.

   Discover the versatility and precision of SV and KV and benefit from Lumberg Connect´s expertise!
