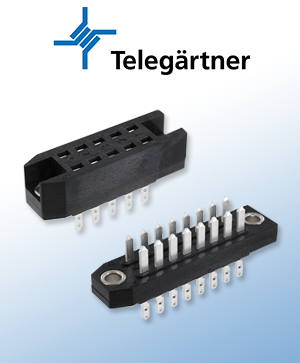

Developers who rely on safe and standards-compliant connections trust Telegärtner’s DIN 41618 connectors.

They are ideal for applications in control engineering, test systems, power electronics,
medical technology, and wind energy.

   Technical Highlights

• Number of contacts: Symmetrical according to DIN 41618 with 10, 16, 20, 26, and 39 pins;
  asymmetrical according to DIN 41622 with 8 to 30 pins.
• Mechanics: ≥ 500 mating cycles, contact force from 0.8 N,
  insulator made of glass fiber reinforced PC.
• Electrical:

  • DIN 41618: 250 V AC / 200 V DC, 5 A, dielectric strength 750 V.
  • DIN 41622: 380 V AC / 450 V DC, 6 A, dielectric strength 1,050 V.

• Standards: Tested according to DIN IEC 60068-1, temperature- and climate-resistant.

   Benefits for Developers

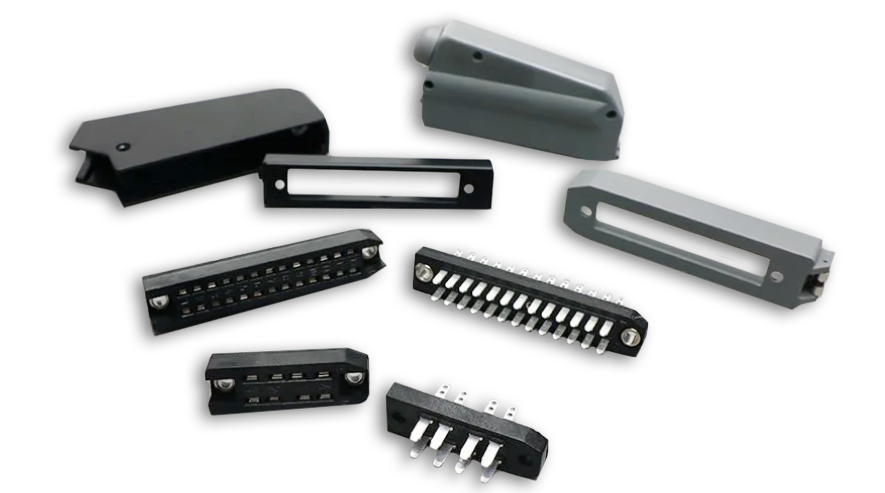

• Flexibility: Metal or plastic housings, compatible with common DIN rail adapters.
• Easy assembly: Cable connections by soldering or PCB mounting, no special tools required.
• Reliability: Low contact resistance (< 2 mΩ) and stable performance even in harsh environments.

Telegärtner DIN 41618 connectors combine robust technology with easy integration.
For developers, this means high safety, fast assembly, and standards-compliant quality – in both traditional and forward-looking applications.
