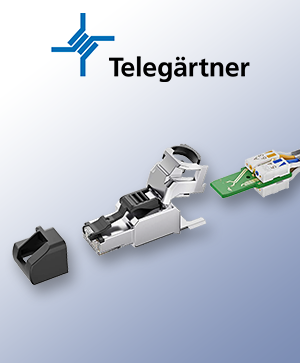

Minimum space requirement: The MFP8-SL RJ45 connector from Telegärtner

Whether in classic building cabling in office buildings, in data centers, in industry or for home cabling:
The field-assembly MFP8 is the first choice wherever powerful and reliable connections are required without great effort. And of course it is suitable for High Power over Ethernet (PoE+).
The MFP8-SL RJ45 connector is characterized by a very short installation length of just 44 mm. The finely graduated cable clamp accommodates cables with an outer diameter of up to 9 mm. Barbs in the cable fixing increase the strain relief. The pre-assembled protective cap provides effective protection for the contacts against dirt and transport damage, even during cable assembly.
The standardized mating face in accordance with EN 60603-7-51, the robust die-cast zinc housing with a tempered surface to protect against external electrical interference and 360° shielding for reliable data transmission even in the event of electrical interference make this connector flexible to use.
The IPC piercing contacts are suitable for conductor cross-sections AWG 27/7 - 22/7; AWG 26/1 - 22/1; AWG 26/19 - 24/19. The 4-chamber wire management is available with color coding according to T568A, T568B and PROFINET.
   Further technical information is available in our online shop!

Monday, March 4, 2024
