For precise measuring tasks: Highly flexible test leads from Stäubli

Over the last four decades Stäubli Electrical Connectors has become a synonym for safe and high-quality measurement accessories worldwide. Whether for testing, measuring or for the diagnosis of components and systems - the innovative accessories offer you the highest performance, reliability and repeatability.

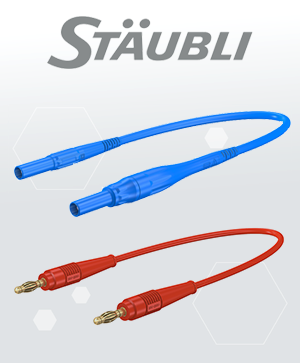

With the series AK205, SLK410, LK410L as well as the fuse measuring cable series XSMS we now offer a wide range of highly flexible test leads, which meets and even exceeds the strict safety requirements for today's insulated test equipment.

With the AK205 series, highly flexible adapter test cables with stackable 2 mm MULTILAM connectors on one side and 4 mm MULTILAM connectors on the other side are available. The rated voltages or currents for these cables are AC 30 V / 10 A and DC 60 V / 10 A. The strands used have a PVC-jacket with a conductor cross-section of 0.5 sqmm and are available in lengths from 7.5 cm to 60 cm.

The SLK410 series offers measuring cables with silicone insulation and is equipped with stackable 4 mm MULTILAM connectors on both sides. The rated voltages of 1000 V CAT II and 600 V CAT III and rated currents of 19 A are suitable for a wide range of applications. The series is available with a conductor cross section of 1.0 qmm available in lengths from 0.25 m to 2 m and is CE and UL certified.

Gold-plated 4 mm MULTILAM plugs and highly flexible connecting cables are available with the LK410L series. With rated voltages of AC 30 V and DC 60 V and rated currents of 19 A you get sufficient reserves for your measuring tasks in the low voltage range. As insulation material of the 1.0 sqmm strands PVC is used. The test cables are available in lengths from 0.25 m to 2 m.

In addition to the series mentioned above, Stäubli offers the XSMS series, a range of fuse test leads. The highly flexible cables with integrable high performance fuses are designed for 1000 V CAT IV according to IEC/EN 61010-031 and allow the use of standard 4 mm safety test probes and clips for secured measurements. The two-part fuse plug can be opened with a few turns of the screw for changing the fuse and allows a high performance fuse 6.3 x 32 mm.

You can find these and other products from Stäubli within our onlineshop.
